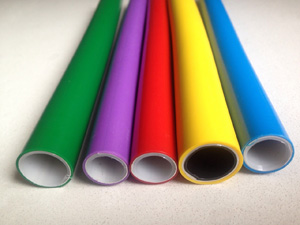

G-PEX PIPE
G-Pex aluminum/plastic composite pipe is a five layered pipe. The pipe consists of a layer of welded aluminum with polyethylene inner and outer layers which are bonded together with a special purpose hot melt adhesive. Extrusion molding method is adopted for composite of pipe. The pressure resistance of metal pipe and corrosion resistance of plastic pipe are combined to produce an optimum product for strenth, longevity, and ease of installation, plus adaptability and standards compliance for a broad range of uses. This construction formula produces an incomparable pipe with the following features:
- Strength of metal pipe which can be bended without bounce. Resistance to high temperatures, high pressure, and corrosion providing excellent performance.
- Smooth inner surface reducing fluid transport resistance, superior to metal pipe of the same diameter by 30%.
- Fire retardant beyond conventional pipe to a V0 level.
- Heat insulating with a thermal conductivity of 0.45W/m-k; dramatically less than that of metal pipe, eliminating the need for additional outer heat insulation material.
- Superior, time-saving cutting and connecting process using special purpose fittings instead of threading. Small diameter G-Pex Pipe can be bended and eliminates the need for multiple fittings.
- Waste savings for small diameter G-Pex pipe which supplied in rolls can be sized as needed.
- Service life equals 50 years and beyond in many applications.
- Additionally cost-saving due to light weight, which is approximately one-tenth that of galvanized pipe, reducing carriage costs and making on-site management easier and faster. Electromagnetic shielded.
- Can be buried directly underground without need for additional conduit, while position is easily detectable with metal detector.
- Antibiosis certified through utilization of aluminum core which completely seals off oxygen, preventing formation and reproduction of bacteria.
show all products -->

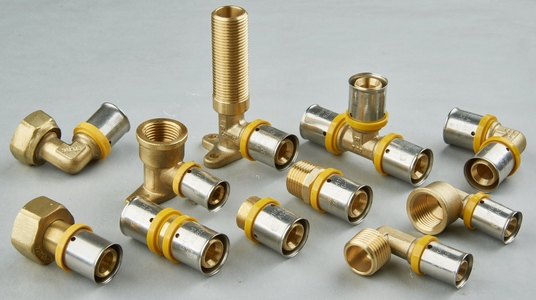

DR BRASS FITTINGS- CRIMP ON SYSTEM
G-Pex crimp on fittings are specially designed and engineered to complement the G-Pex Pipe and comply to AS4176, AS4176.8 and AS2537. All G-Pex fittings are made form solid DR brass ( dezincification resistant quality ) which can be used for water and gas and require no flame, heat or solvents when jointing to G-Pex Pipe.
show all products -->
WARRANTY
G-Pex piping system has 25 years warranty and is also backed by a products and public liability insurance policy to the value of AUD $20 million dollars from GIO.
TOOLS
G-Pex crimp on tools are designed to be used with G- Pex Pipe to ensure easy and effective joints. All tools are made with high quality standard and can be used for a long period of time.
